DM SERIES
PRECISION PLANETARY GEARBOXES

The DM Series planetary gearboxes offer reduced backlash, easy motor assembly, smooth operations and integrated product configurations.

Backlash 5-8 ARC MIN
Available Sizes 42, 60, 70, 90, 120, 150, 180, 220
Noise 64-65 dB
Lifetime 20,000 hours
Mounting Through hole
Stage Ratio DM042 DM060 DM070 DM090 DM120 DM150 DM180 DM220
Defined Output Torque (Nm) 1 3 - 44 48 168 260 476 987 1560
4 35 54 60 188 306 560 1280 2200
5 34 48 56 180 292 536 1248 2360
7 30 46 52 176 285 520 1185 1880
10 22 44 48 168 260 476 987 1560
2 9 - 44 48 168 260 476 987 1560
12 - 44 48 168 260 476 987 1560
15 - 44 48 168 260 476 987 1560
16 35 54 60 188 306 560 1280 2200
20 34 48 56 180 292 536 1248 2360
21 - 44 48 168 260 476 987 1560
25 34 48 56 180 292 536 1248 2360
28 30 46 52 176 285 520 1185 1880
30 - 44 48 168 260 476 987 1560
35 30 46 52 176 285 520 1185 1880
40 22 44 48 168 260 476 987 1560
50 22 44 48 168 260 476 987 1560
70 22 44 48 168 260 476 987 1560
3 100 34 48 56 180 292 536 1248 2360
Peak Output Torque (Nm) 1, 2, 3 3~100 3x Defined Output Torque
Backlash (arc min) 1 3~10 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5 ≤ 5
2 9~70 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8
Defined Input Speed (RPM) 1 3, 4, 5 3300 3300 3300 2600 2300 2200 1500 1500
7, 10 4000 4000 4000 2900 2700 2700 2400 2000
2 9~40 4400 4400 4400 3200 3000 3000 2800 2400
50 4800 4800 4800 3600 3300 3200 3000 2500
70 5500 5500 5500 4200 3900 3500 3200 2000
Weight (kg) 1 3~10 0.40 1.28 1.40 4.10 6.30 18.00 38.00 70.00
2 9~70 0.50 1.60 1.80 5.20 7.80 25.00 50.00 78.00
Torsional Rigidity (NM/arc min) 1, 2 3~70 3.00 6.50 7.00 14.00 27.00 48.00 115.00 218.00
Allowable Radial Force (N) 700 1400 1400 6200 7500 14000 22000 28800
Allowable Axial Force (N) 350 800 800 5200 6450 12000 20000 26000
Noise (dB) 65 65 65 64 64 64 64 64
Lifetime (hrs) 20000
Temperature (C°) -15°C ~ +90°C
Protection Rank IP64
Lubricant Synthetic Lubricant, ISO VG220
Mass Moments of Inertia (kg x cm2) 1 3 - 0.042 0.042 0.780 2.380 19.800 48.700 66.500
4 0.040 0.030 0.030 0.600 2.000 17.000 45.000 63.20
5 0.040 0.029 0.029 0.590 2.000 17.000 46.500 65.000
7 0.040 0.028 0.028 0.730 2.000 16.800 46.500 65.800
10 0.040 0.035 0.035 0.750 2.300 19.000 48.000 66.800
2 9 - 0.042 0.042 0.780 2.380 19.800 19.800 24.500
12 - 0.030 0.030 0.730 2.100 17.000 19.000 24.000
16 0.030 0.030 0.030 0.600 2.100 17.000 17.000 22.000
20 0.030 0.030 0.030 0.600 2.100 16.800 17.000 22.000
25 0.030 0.029 0.029 0.750 2.100 17.000 17.000 21.500
28 0.030 0.030 0.030 0.750 2.100 19.000 17.000 21.500
35 0.030 0.030 0.030 0.730 2.380 19.000 19.000 21.000
40 0.030 0.035 0.035 0.780 2.380 19.000 19.000 21.000
50 0.030 0.035 0.035 0.780 2.380 19.000 19.000 21.000
70 0.030 0.035 0.035 0.780 2.380 19.000 19.000 21.000
3 100 0.030 0.035 0.035 0.780 2.380 19.800 19.800 20.600

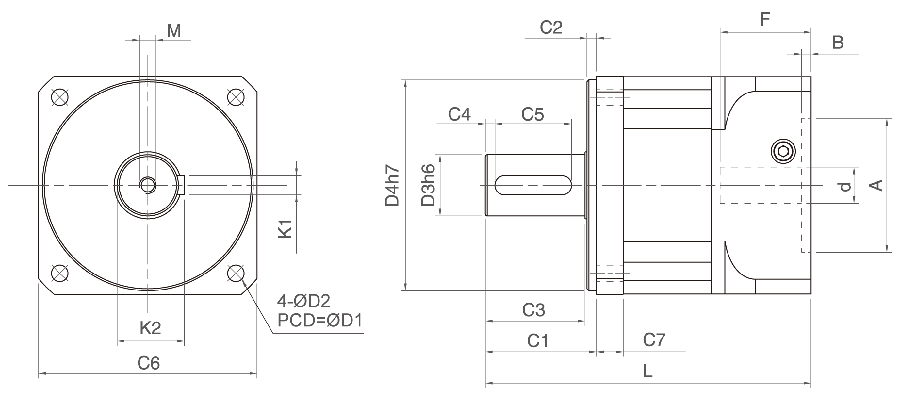

* All dimensions in mm
DM042 DM060 DM070 DM090 DM120 DM150 DM180 DM220
D1 50.0 70.0 75.0 105.0 130.0 165.0 215.0 250.0
D2 4.20 5.50 5.50 6.80 8.60 10.50 13.00 17.00
D3 12.0 16 (12~16) 16 (12~16) 20 (16~22) 32 (24~35) 42 (38~45) 55 (55~60) 75 (50~75)
D4 35.0 50.0 60.0 80.0 110.0 130.0 160.0 180.0
C1 25.0 35.0 33.0 56.0 58.0 74.0 107.0 124.0
C2 4.0 7.0 5.0 6.0 5.0 4.0 10.0 15.0
C3 20.0 27.0 27.0 49.0 52.0 67.0 96.0 106.0
C4 3.0 3.0 3.0 5.0 5.0 5.0 6.0 7.0
C5 12.0 20.0 20.0 25.0 40.0 45.0 70.0 90.0
C6 42.0 60.0 68.0 94.0 114.0 142.0 180.0 220.0
C7 8.0 15.0 17.0 17.0 18.7 18.0 20.0 30.0
L1 96.9 125.7 125.7 167.0 170.3 262.0 334.0 356.0
L2 111.4 147.7 147.7 195.3 198.6 313.8 416.0 462.5
M M4 x 0.7 x 15 M4 x 0.7 x 15 M4 x 0.7 x 15 M6 x 1.0 x 20 M8 x 1.25 x 27 M12 x 1.75 x 32 M12 x 1.75 x 40 M14 x 2.0 x 40
K1 4.0 5.0 5.0 6.0 10.0 12.0 14.0 20.0
K2 13.5 18.0 18.0 22.5 35.1 45.0 58.5 79.5
d ≤ 8.0 ≤ 14.0 ≤ 14.0 ≤ 24.0 ≤ 28.0 ≤ 42.0 ≤ 55.0 ≤ 69.7
A 20~30 30~50 30~60 50~80 55~110 95~130 95~155 180~250
B 5.0 6.0 6.0 6.0 5.0 10.0 11.0 12.0
F ≤ 25.0 ≤ 35.0 ≤ 35.0 ≤ 47.5 ≤ 47.5 ≤ 66.5 ≤ 82.5 ≤ 88.5
